PMT20010 Instrument Transformer Comparator





PMT20010 Instrument Transformer Comparator

The PMT20010 Comparator is an automatically balancing bridge that measures the accuracy of instrumentation potential and current transformers.

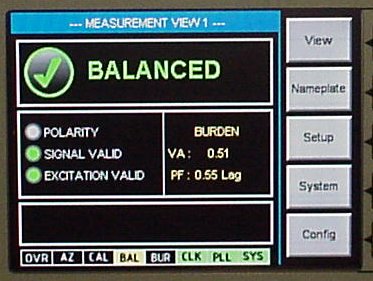

Large, backlit, easy-to-read numeric LCD digits are augmented by a colour TFT graphical LCD panel to display measurements of ratio error, ratio correction factor, phase error in centiradians or minutes, excitation voltage, excitation current, accuracy class and the true test circuit burden.

--- Instrument Features ---

  • CT and PT Testing
  • Up to 1 PPM Resolution and 10 PPM Accuracy
  • Automatic Self-Balancing Operation and Fast Balancing Time
  • Three Current Ranges 1 Amp, 5 Amp, 10 Amp (2A, 10A, 20A Max.)
  • Wide Dynamic Current Operation (0.1% to 200%)
  • Connection to Two-Stage Reference CT's
  • True Test Circuit Burden Measurement (VA and Power Factor)
  • Reverse Polarity Detection
  • Displays ANSI or IEC Accuracy Class
  • Displays % Ratio Error or Ratio Correction Factor
  • Displays Phase Error in CentiRadians or Minutes
  • Excitation displayed as Secondary, Primary or Percent values
  • Backlit Colour TFT Display supporting extended functions
  • Large, easy-to-read, backlit LCD numeric displays
  • Isolated Serial Ports (2) and Parallel Port
  • USB port
  • Local or Remote operation
  • Date results can be uploaded to PC hosted Excel application
  • Field installable instrument firmware upgrades
  • Available in rack-mount or desktop versions
